Valmet Valvcon ADC Series Electric Actuator 1000 lb-in Q30269 LADCWX1000UL3Z-UP

Valmet Valvcon™ ADC-Series Electric Actuator – Continuous Duty Industrial Valve Actuator

High-performance electric actuator designed for industrial valve automation applications. This unit is part of the Valvcon™ ADC Series by Valmet, built for continuous duty service and hazardous location environments.

Product Details:
- Brand: Valmet (Valvcon™)
- Series: ADC Series

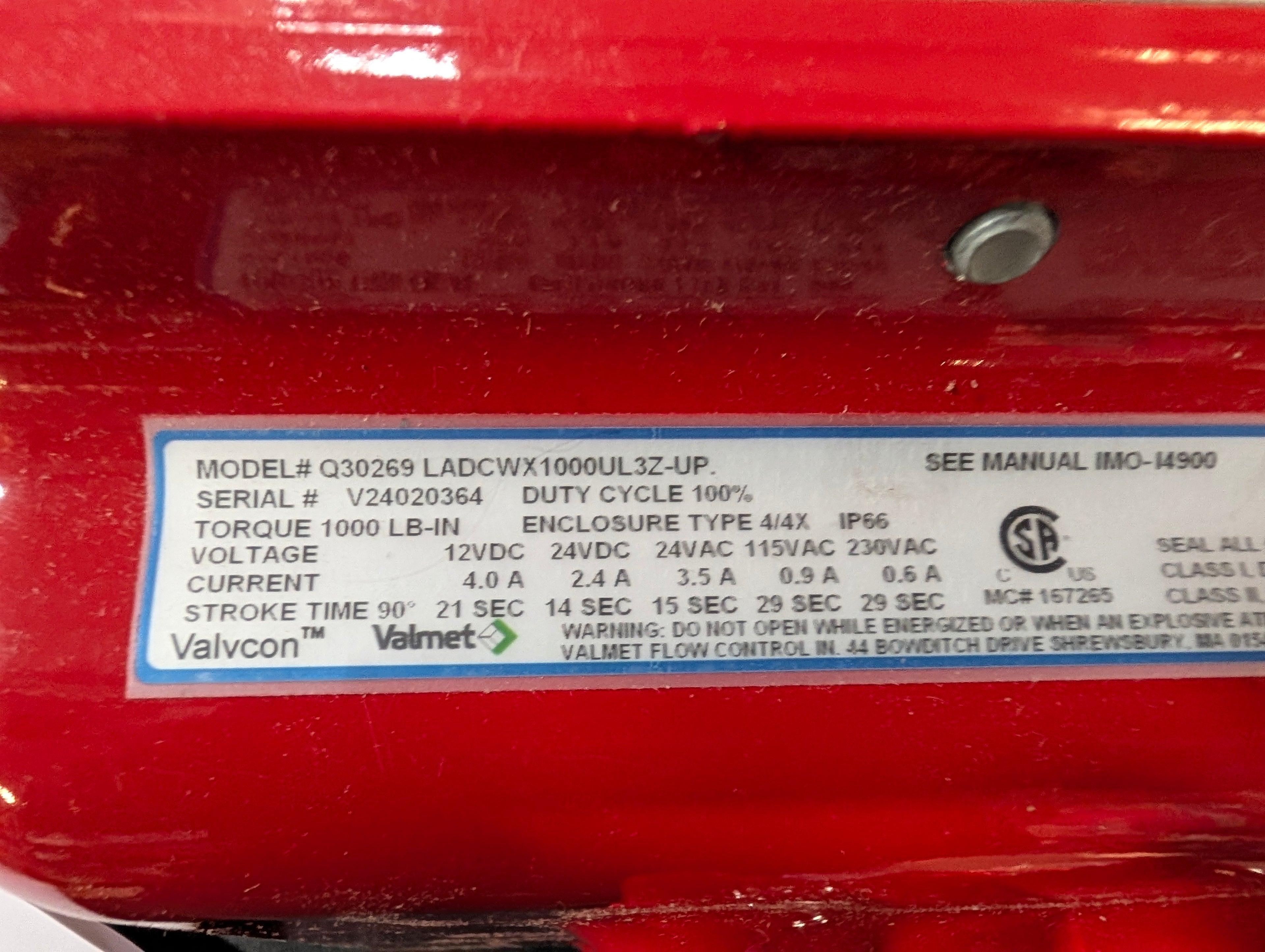

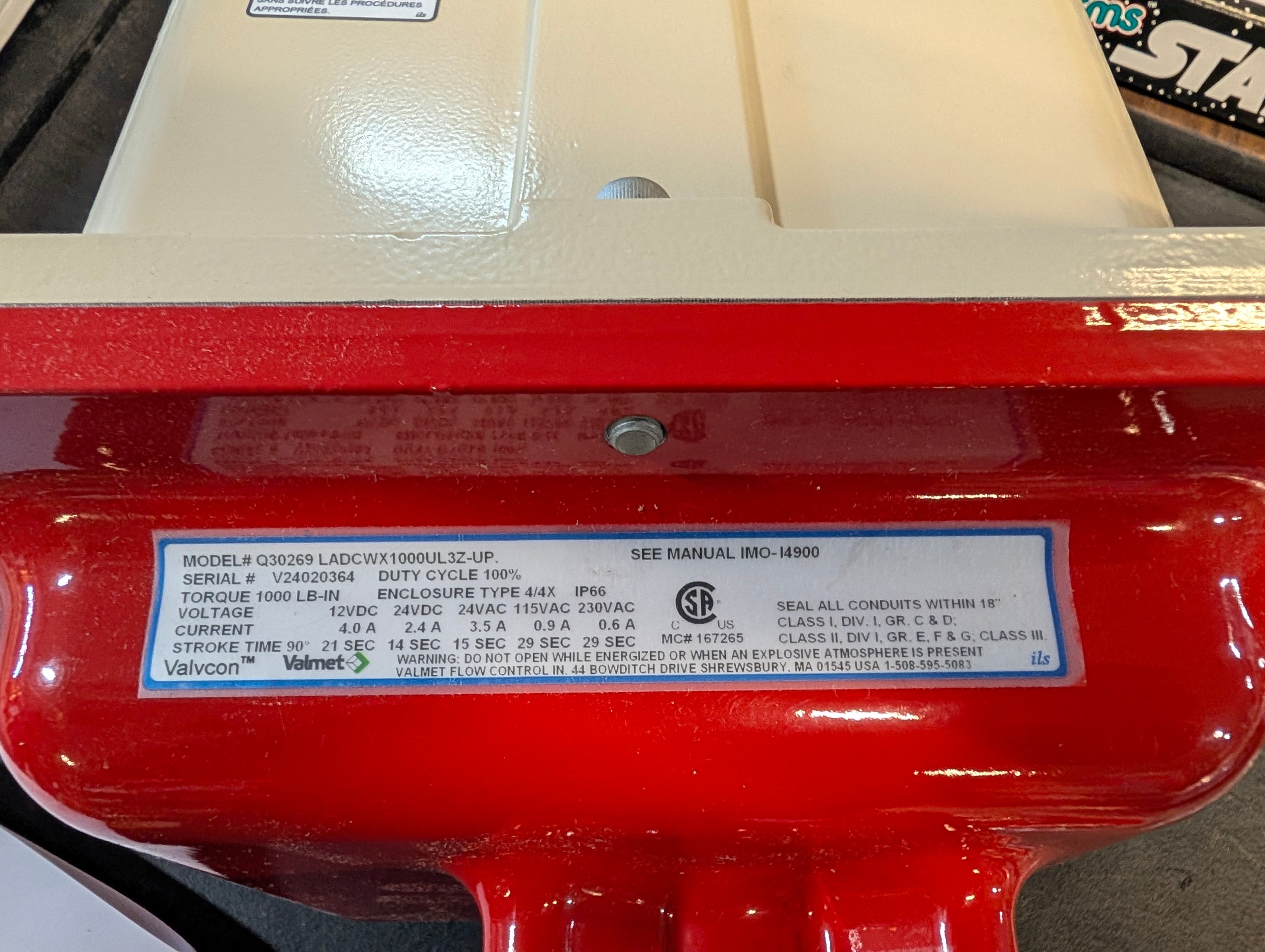

- Model: Q30269 LADCWX1000UL3Z-UP
- Serial #: V24020364
- Torque: 1000 lb-in
- Duty Cycle: 100% Continuous Duty
- Enclosure Rating: Type 4/4X, IP66
- Hazardous Location Rated (per label):
  - Class I, Div. I, Groups C & D
  - Class II, Div. I, Groups E, F & G
  - Class III
- CSA Certified (MC# 167265)

Voltage Options:
- 12VDC – 4.0A
- 24VDC – 2.4A
- 24VAC – 3.5A
- 115VAC – 0.9A
- 230VAC – 0.6A

Stroke Time (90°):
- 12VDC: 21 sec
- 24VDC: 14 sec
- 24VAC: 15 sec
- 115VAC: 29 sec
- 230VAC: 29 sec

Features:

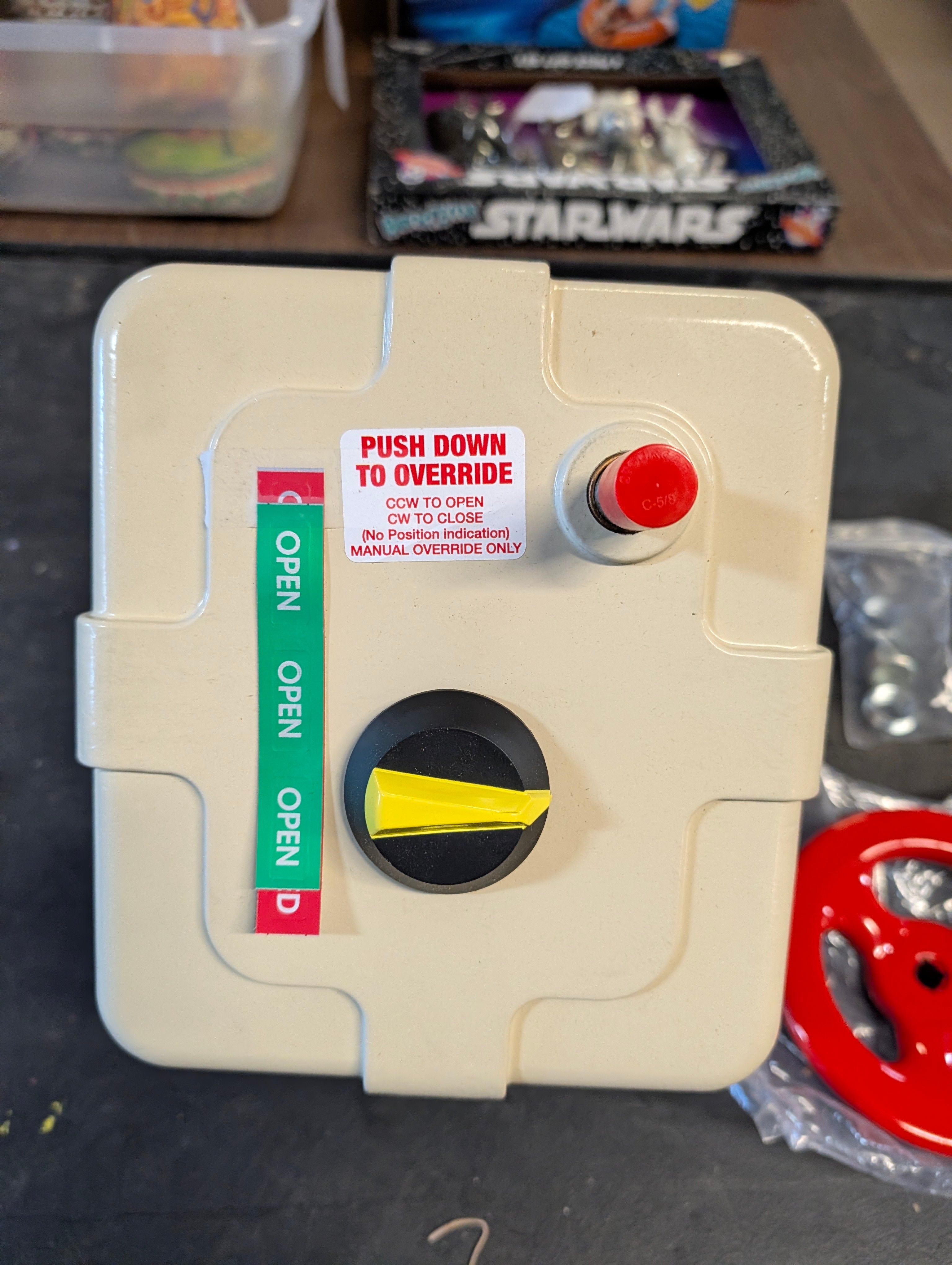

- Manual override (push-down override function)
- Position indicator
- On/Off and modulating capability
- UL2, UL3, UL4, UL5, UL6 & UL7 options (-UP configuration)

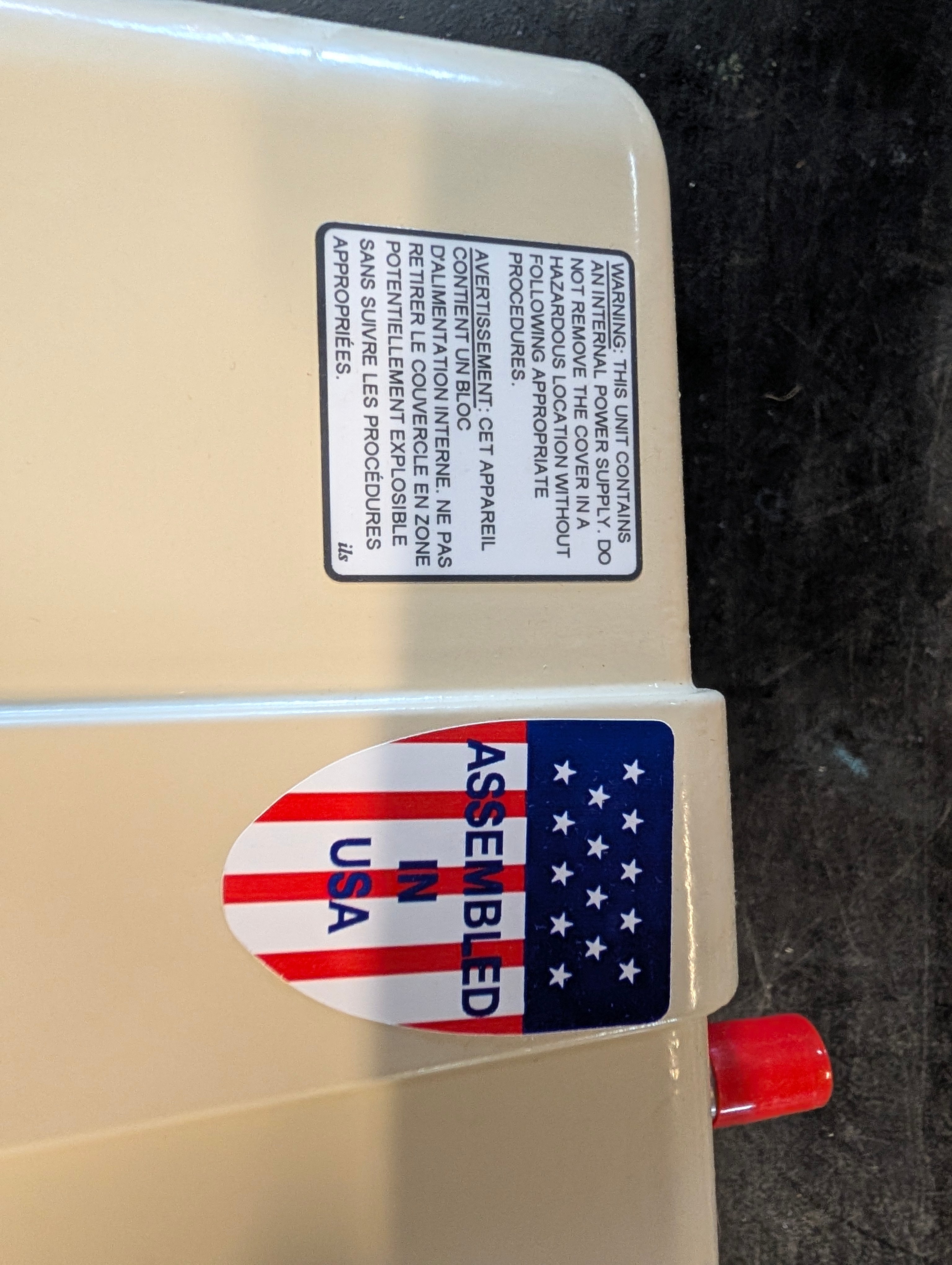

- Assembled in USA

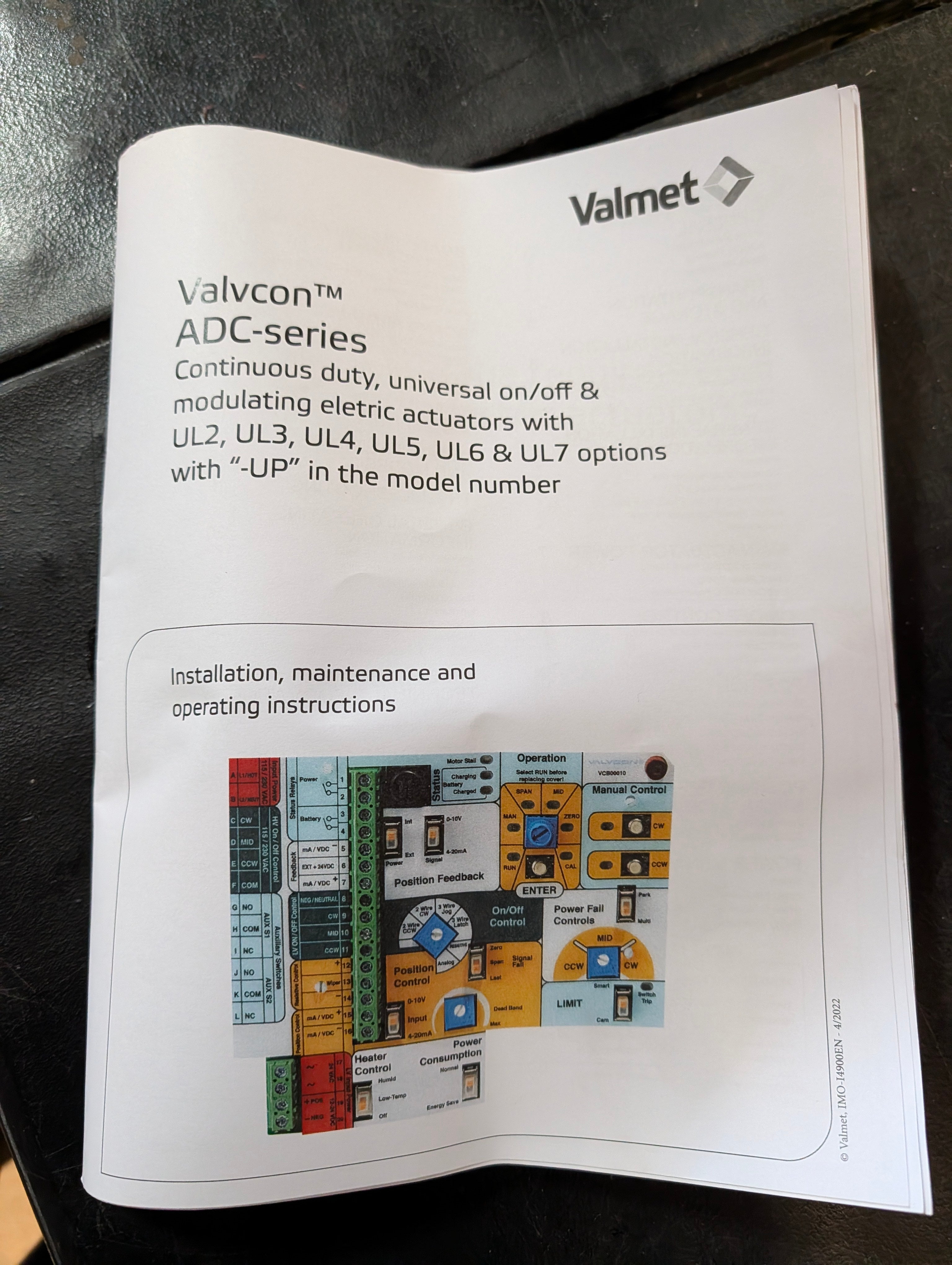

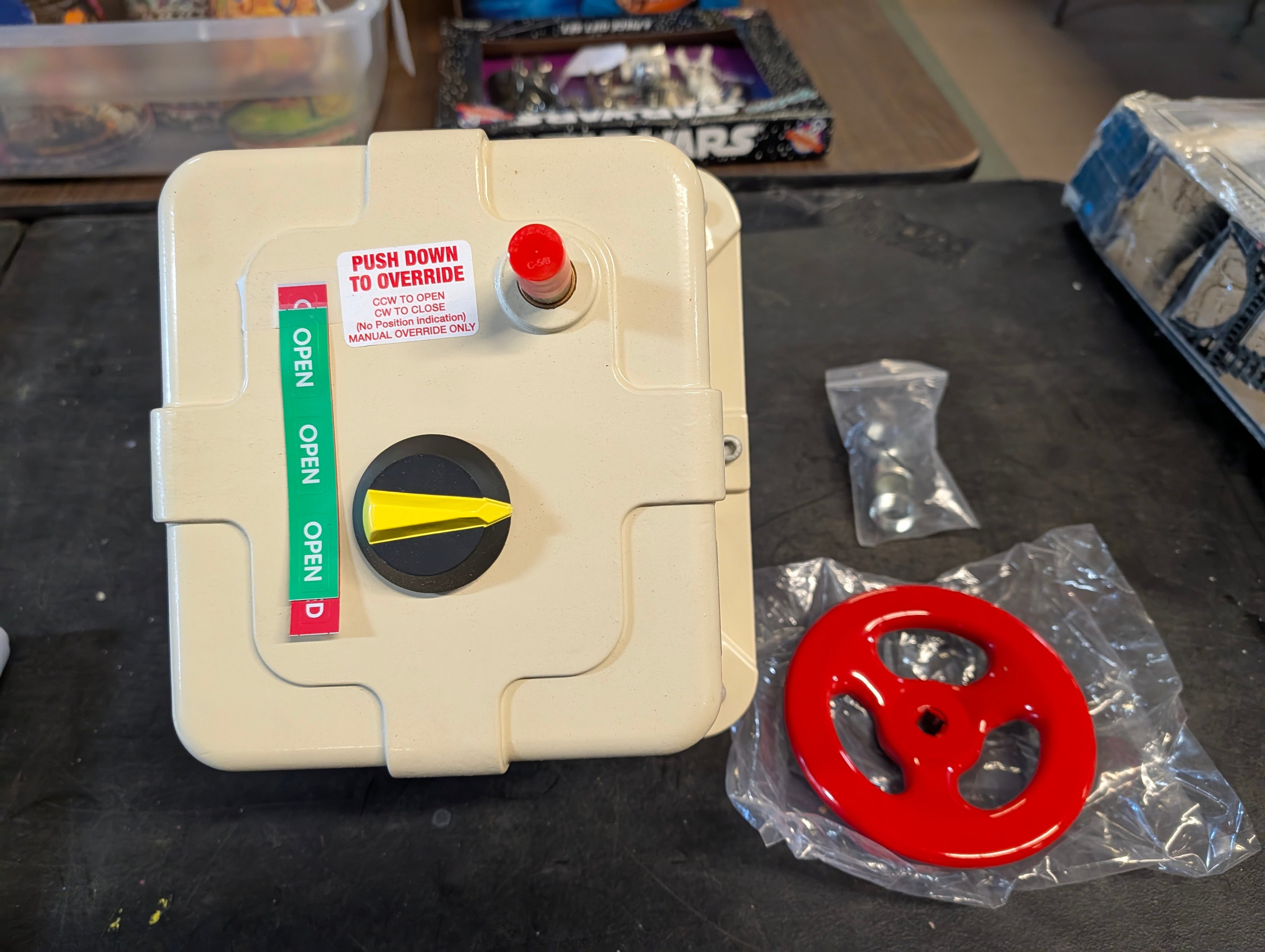

- Includes manual and red handwheel (as shown)

Applications:
Commonly used in oil & gas, chemical processing, water treatment, power generation, and industrial flow control systems requiring hazardous location compliance.

Condition:
Appears unused or lightly handled surplus. Includes documentation and manual override wheel. Minor cosmetic wear from storage/handling. Please review photos for exact condition and configuration.

Note: Do not open while energized or in explosive atmosphere (per manufacturer warning label).
